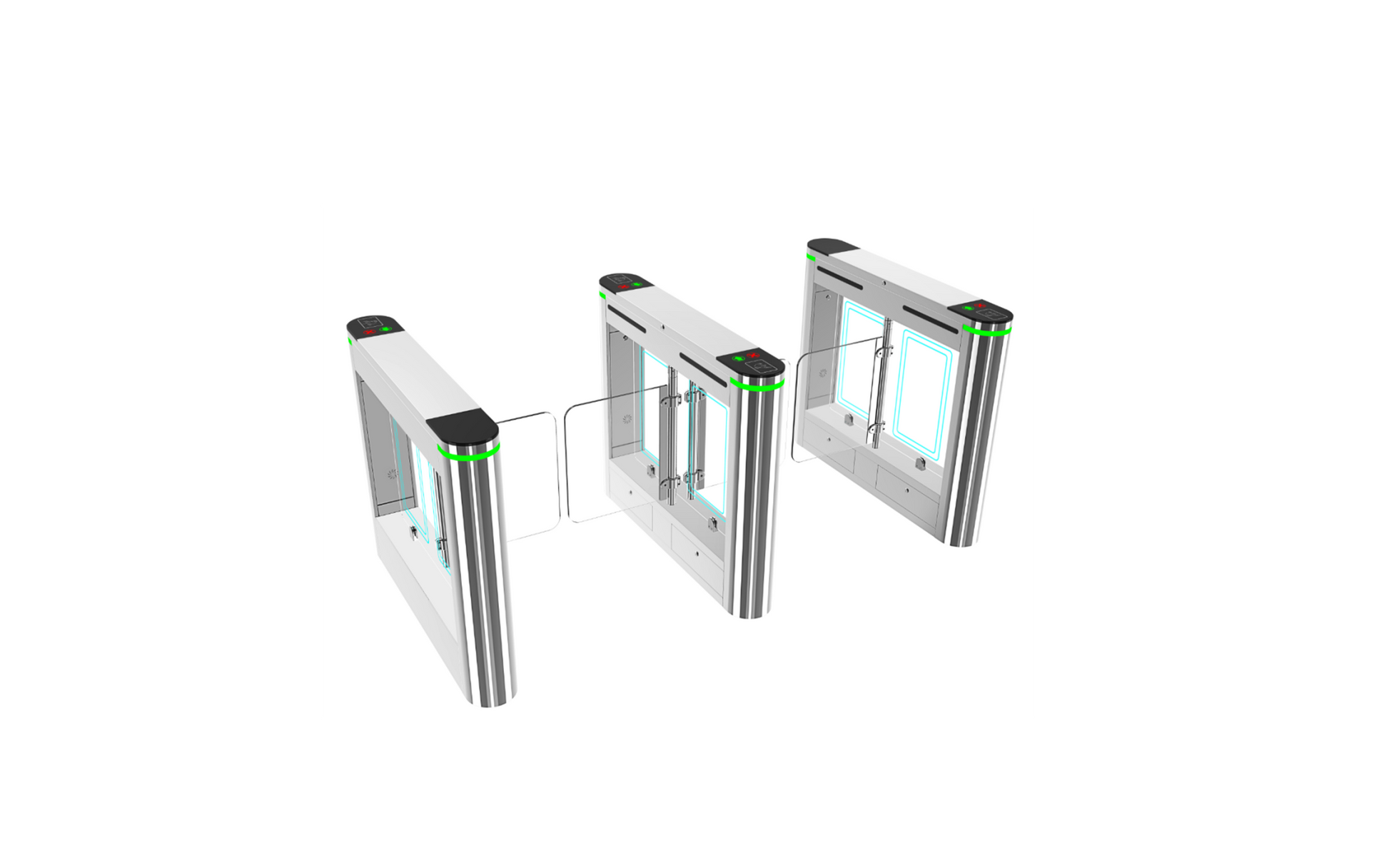

LM-W13-S(D) Plane arc Swing Gate

International 304 stainless steel is selected, which can sense the luggage compartment's pull rod, ensuring safe passage. The integrated movement is located in the top chassis, and the circuit control box is located in the side column. It is easy to install, debug, and maintain, ensuring long-term reliability. Support verification of multiple access methods such as QR code, fingerprint, facial recognition, card swiping, sensor, and normally open. It can be widely used in residential areas, campuses, office buildings, enterprises and institutions.

• Adopting advanced non-destructive movement structure and equipped with high-quality DC brushless motor, achieving precise control, stable operation, and long service life;
• The average fault free operation cycle is over 5 million times;
• Support advanced infrared anti pinch and mechanical anti pinch dual intelligent anti pinch technology to comprehensively protect pedestrian traffic safety;
• All electrical modules use safe voltage below 24V to prevent pedestrians from getting electrocuted and injured;
• When there is a power outage, the system will automatically unlock the door swing, which can be manually pushed to an open state for easy evacuation of people;
• Sensitive perception of illegal intrusion behaviors such as reverse passage and tailgating, and can issue warnings through sound, light, and other forms;
• Equipped with fault self checking function, it can alert users in case of abnormalities, making it convenient for maintenance and use;
• Waterproof rating up to IP56, ensuring maximum waterproof performance of outdoor turnstiles;
• Internally integrated voice chip, which can achieve simple voice prompts and vividly and effectively guide pedestrians to pass;
• Support recording the number of abnormal events such as tailgating, reverse, and forced intrusion, and generate alarm uploads.
