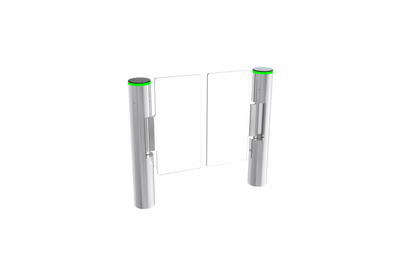

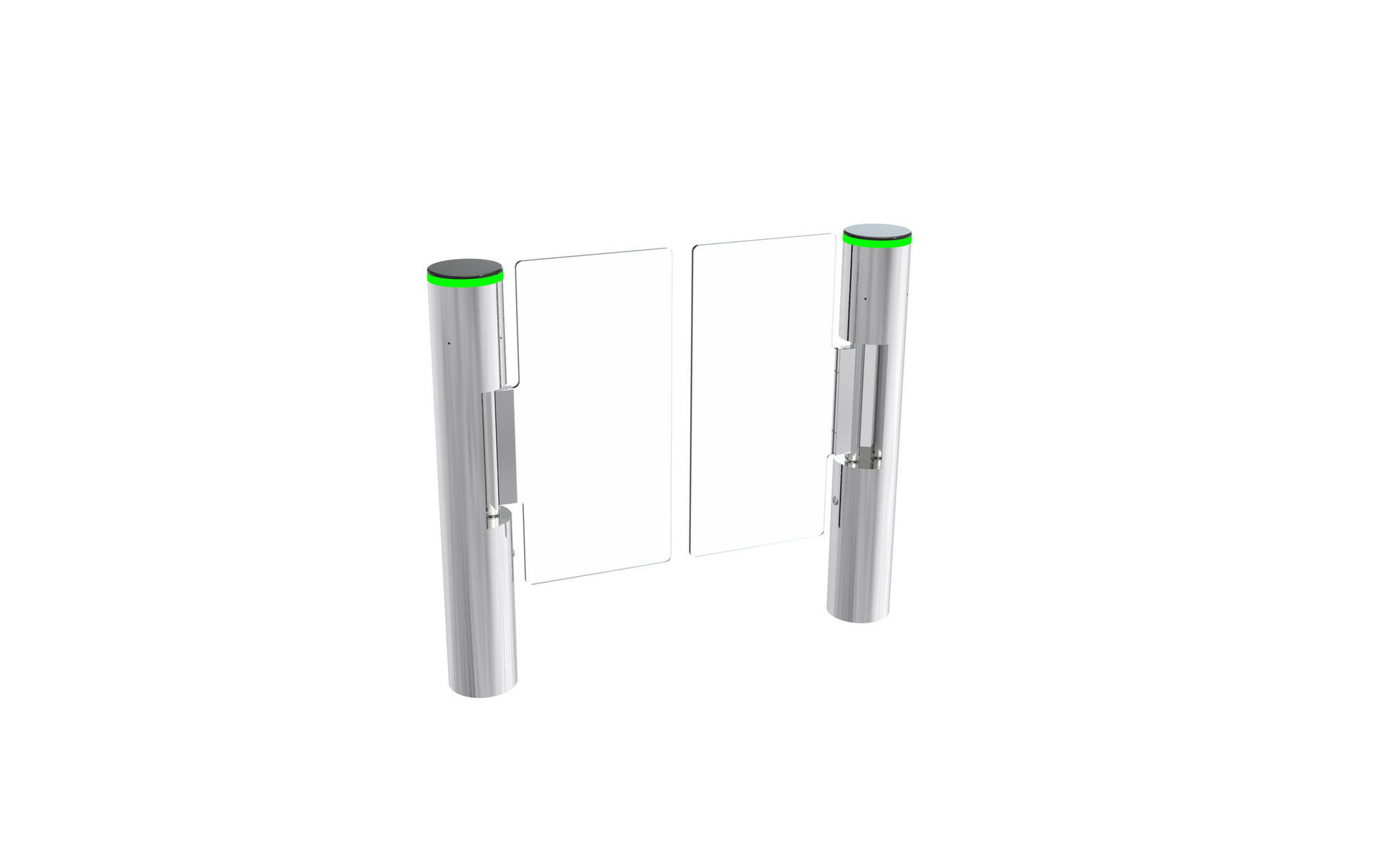

LM-S7 Cylindrical Swing Gate
LM-S7 Cylindrical Swing Gate
Tax included. Shipping calculated at checkout.
SKU:
Out of stock
Couldn't load pickup availability
- The cylindrical swing gate is a space-saving, aesthetically pleasing, and simple design.
- It supports multiple access methods, including facial recognition, card scanning, sensing, and normally open modes. The gate is engineered with advanced technology to ensure reliable long-term operation and is suitable for various venues such as hotels and clubs.
Strong and Stable Control Core：
Utilizes a state-of-the-art brushless motor structure with a high-quality DC brushless motor for precise control, stable operation, and extended service life. The average failure-free operating cycle exceeds 5 million times.
Safety and Reliability:
All electrical modules operate at safe voltages below 24V to prevent electric shock. In the event of a power outage, the gate arms automatically unlock and can be manually pushed open for crowd evacuation.
Sensitive Detection:
The system detects unauthorized entries, such as reverse passage or tailgating, and issues warnings through sound or light. These alerts can be uploaded to the management system via a serial port and integrated with other security systems.
Ease of Maintenance and Installation:
Only two connection lines are required, simplifying wiring and installation. The system has a self-check function that provides alarms in case of faults, making it easier for users to maintain and use.
| Product model |
S7 |
| Passing Frequency |
30-40 people perminute |
| Fire Linkage |
Gate arms automatically unlock during power failure |
| Indicator Light Color |
Blue |
| Arm Light Color |
Red/Green(standard equipment without lights) |
| Interface Parameters |
RS232 standard,distance ≤1200 meters |
| Motor |
DC brushless motor |
| Housing Material |
304 stainless steel,standard thickness 1.2mm |
| Arm Material |
Acrylic/stainless Steel |
| Service Life |
≥5 million cycles |
| Operating voltage |
220V input;24V output |
| Power |
6oW per channel |

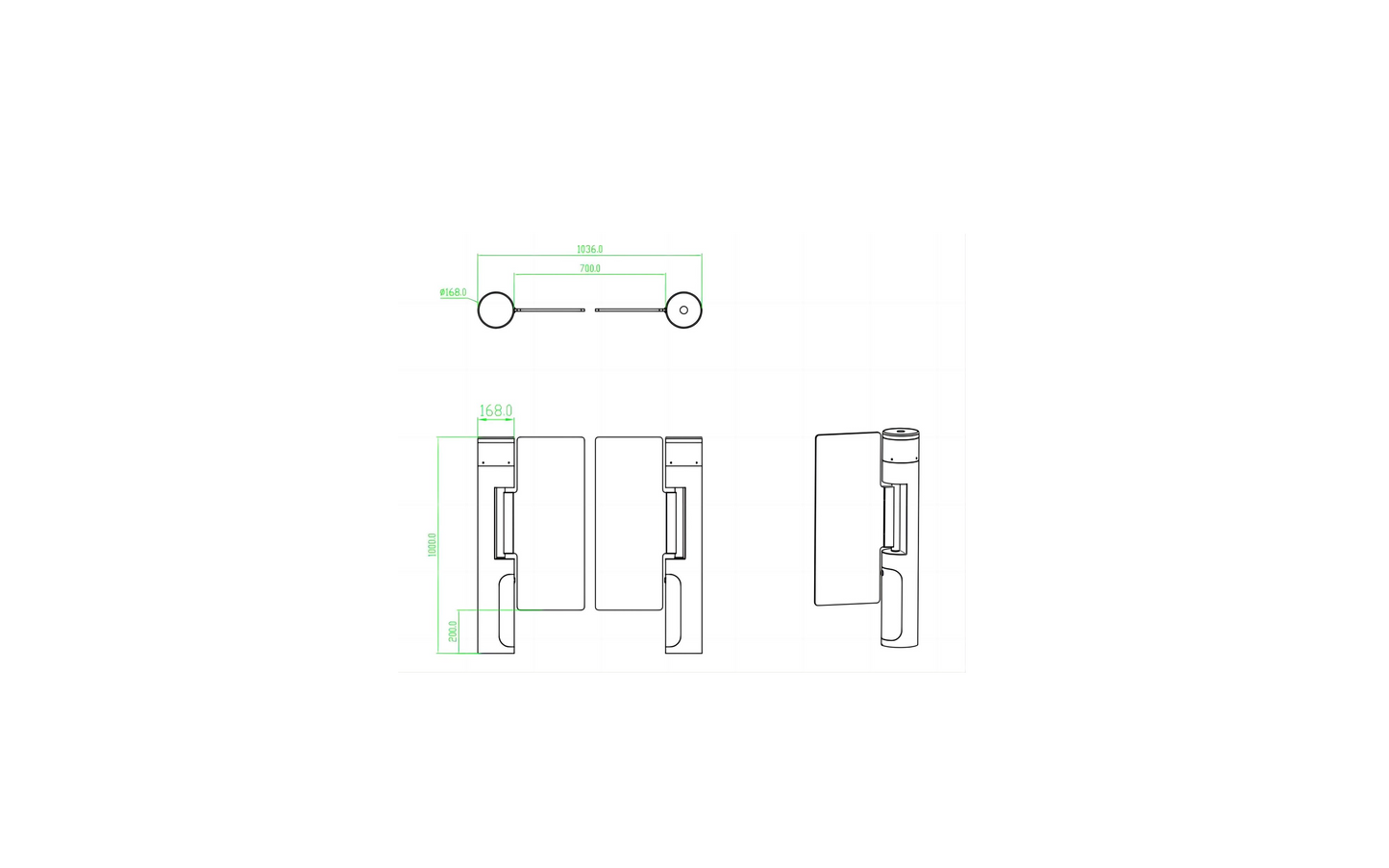

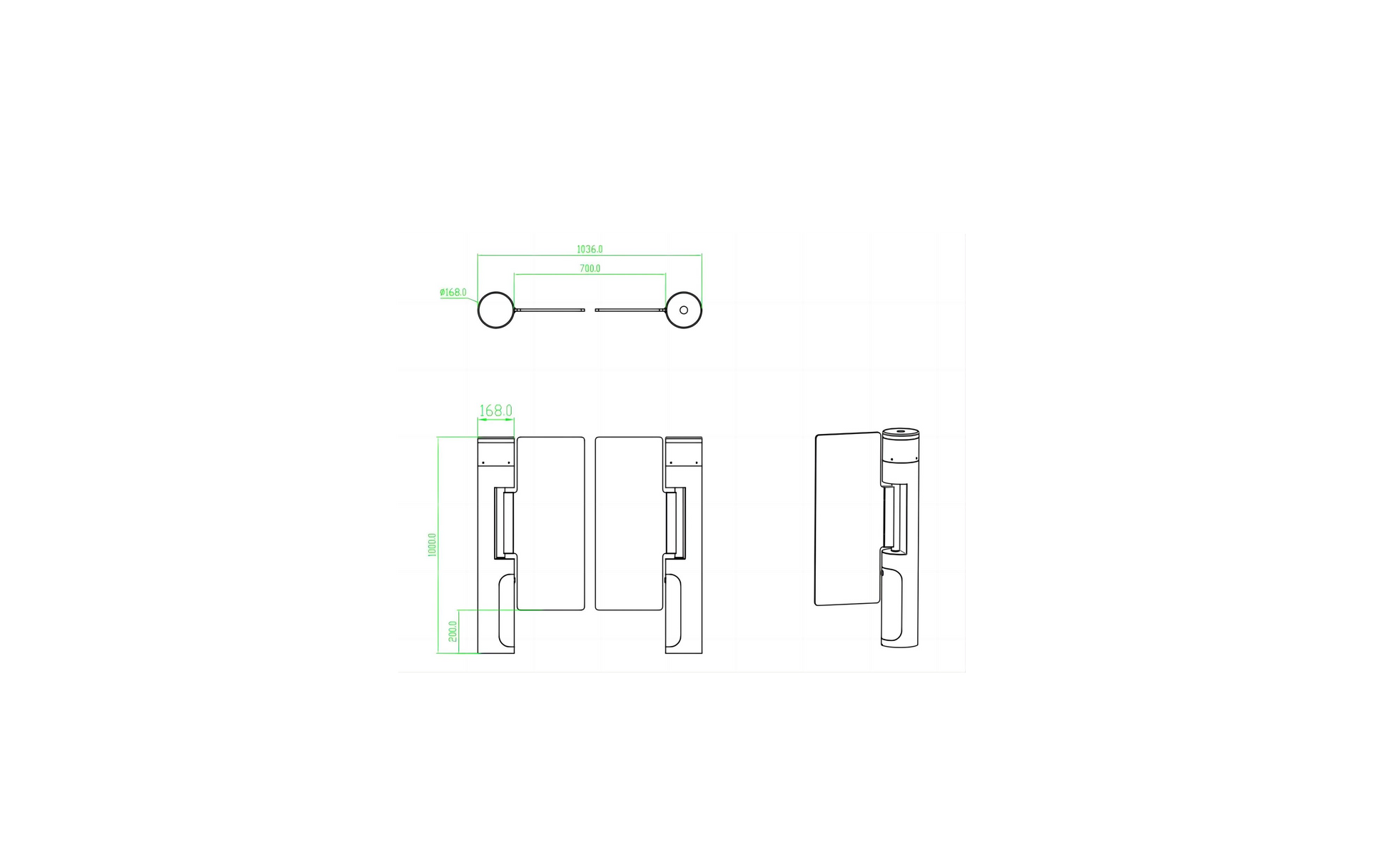

| Dimensions |
Φ168mmxH1000mm |
| Channel Width |
600mm-800mm(bi-directional) |
| Closing Precision |
≤1degree |
| Operating Environment |
-20℃ to60℃;Humidity:5%to80% |
| Protection Level |
IP54 |
