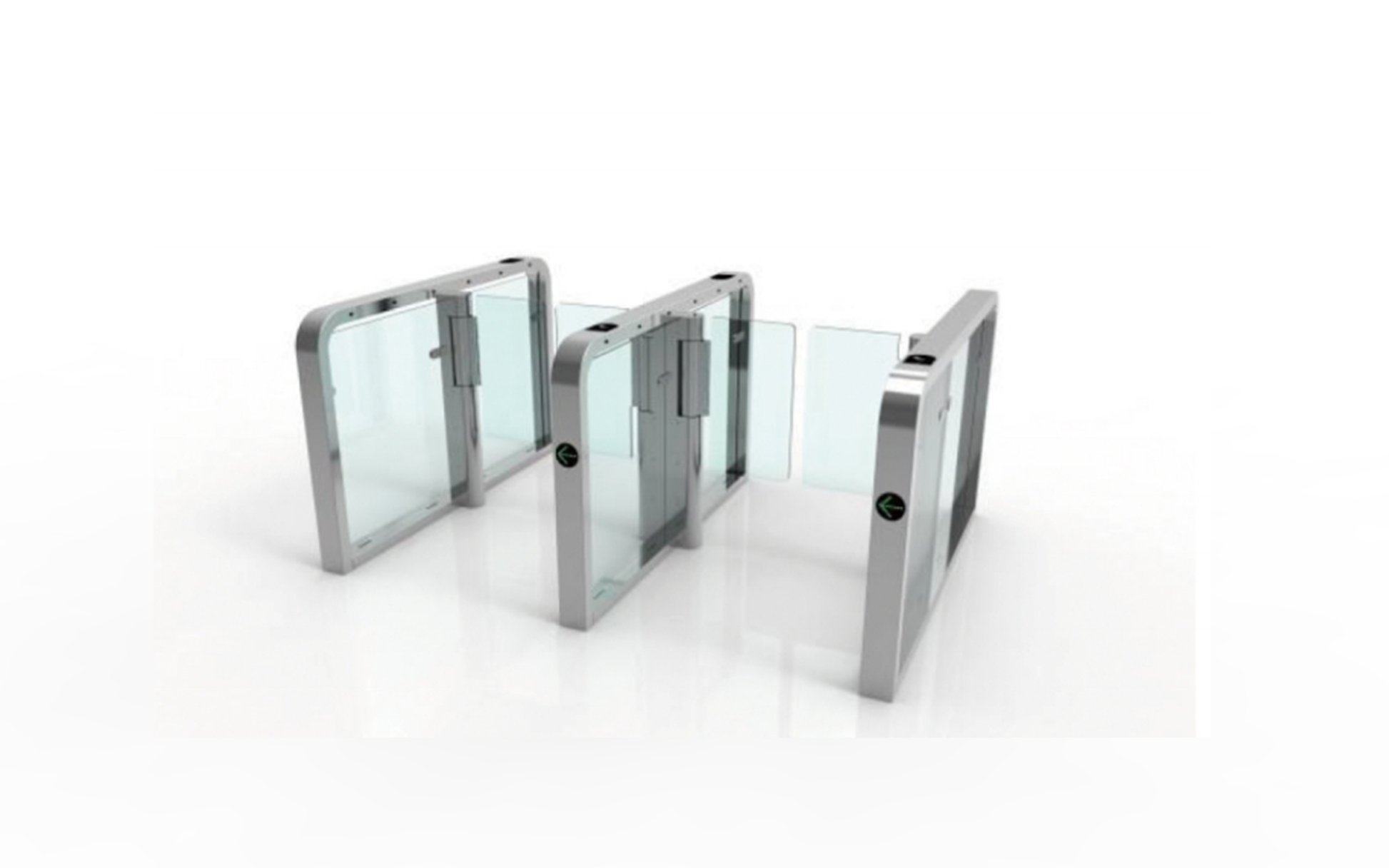

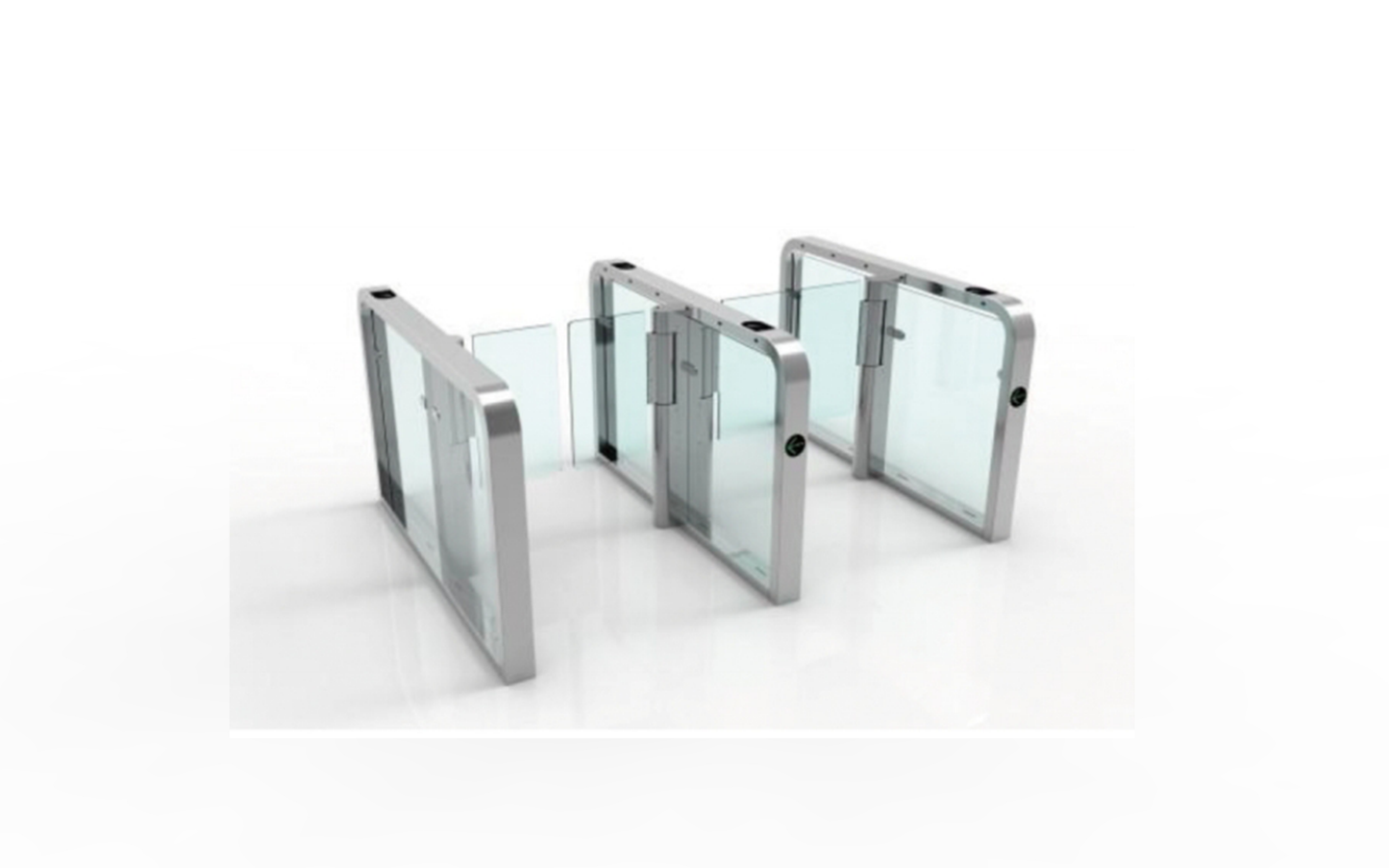

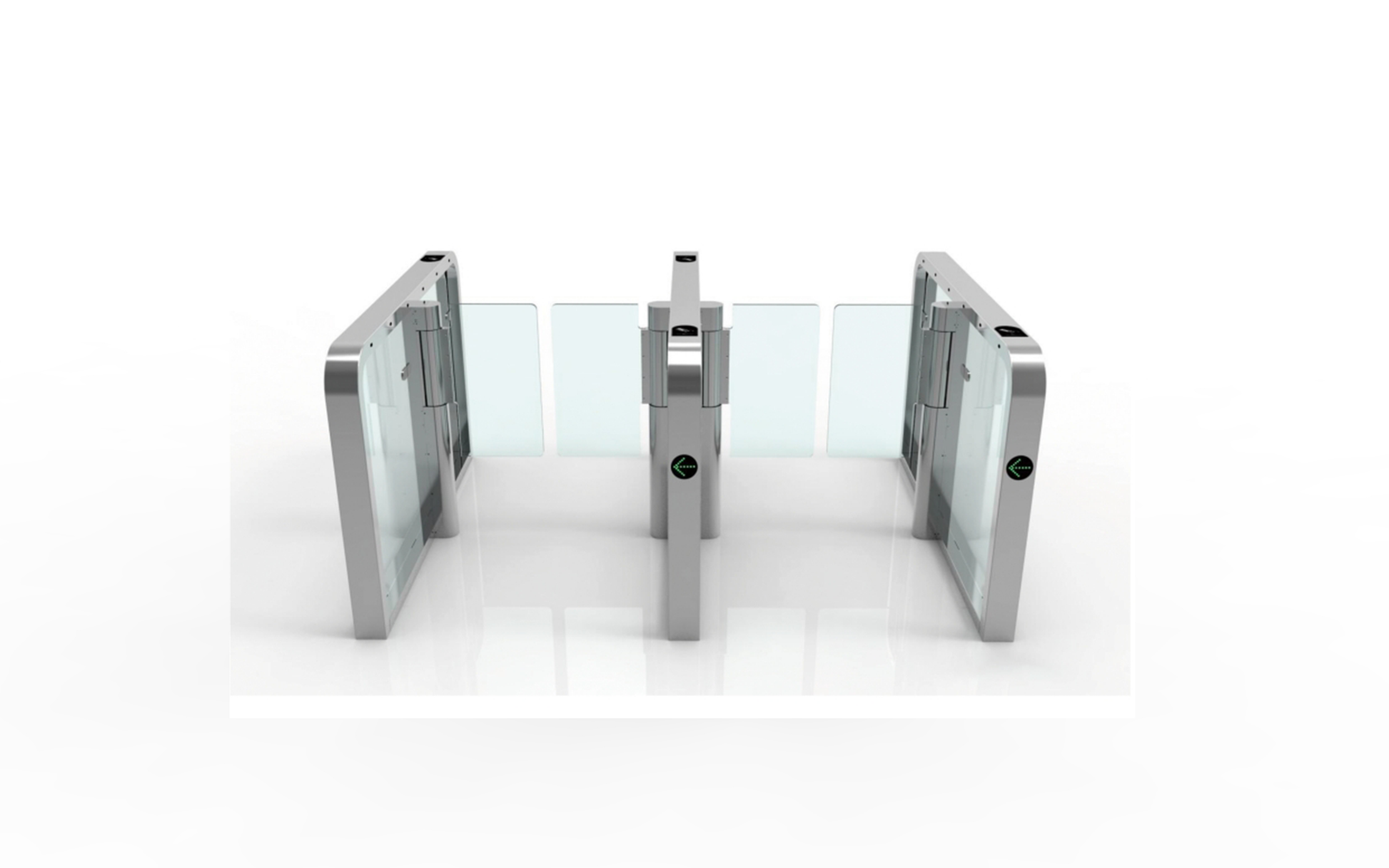

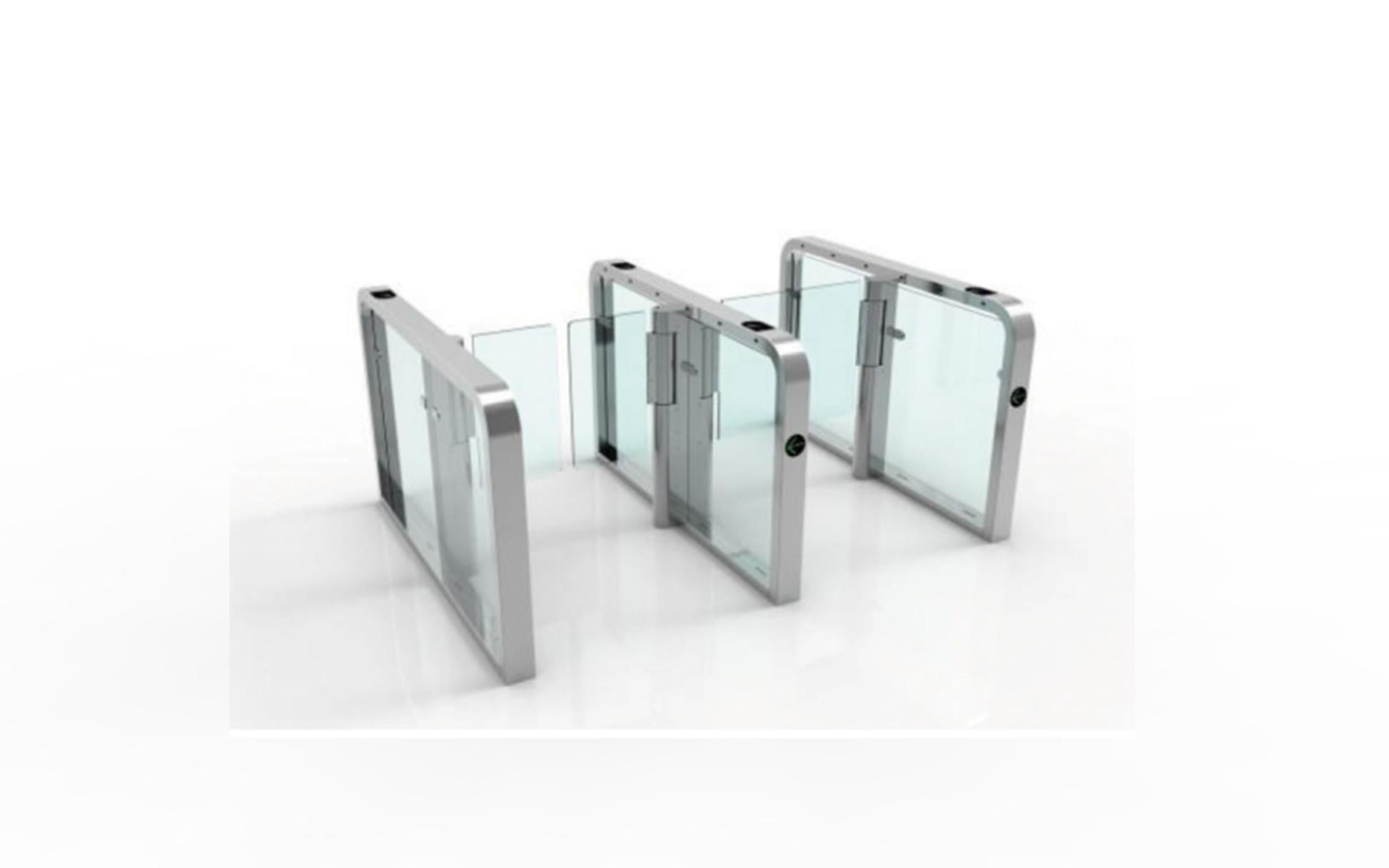

LM-Q2-S(D) High-end Swing Gate

LM-Q2-S(D) High-end Swing Gate

Regular price ¥0.00 CNY
Regular price Sale price ¥0.00 CNY
Sale Sold out
Taxes included.

Tax included. Shipping calculated at checkout.

SKU:

Out of stock

PRODUCT DESCRIPTION

  • 304 brushed stainless steel material, laser cutting process, beautiful appearance.
  •  Adopt DC brushless precision planetary motor, driven by imported motor drive module. The movement runs stably and reliably withweak noise.
  •  Adopt high-precision angle encoder as the sensor to monitor the running track of the movement in real time. The equipment runsmore smoothly and the movement has a longer service life.
  • The baffle has a fast switching speed and a high traffic rate
  • Infrared correlation technology monitors the passage status of people in real time, effectively preventing tailgating and backflushingAfter power failure, the baffle will open automatically to form a transparent passage, meeting fire protection requirements
  • Fast identity authentication technology can accurately and eficiently identify lC cards, ID cards, magnetic cards or barcodes.Acousto-optic or voice prompt function to prevent people from entering ilegally or passing irregularly.

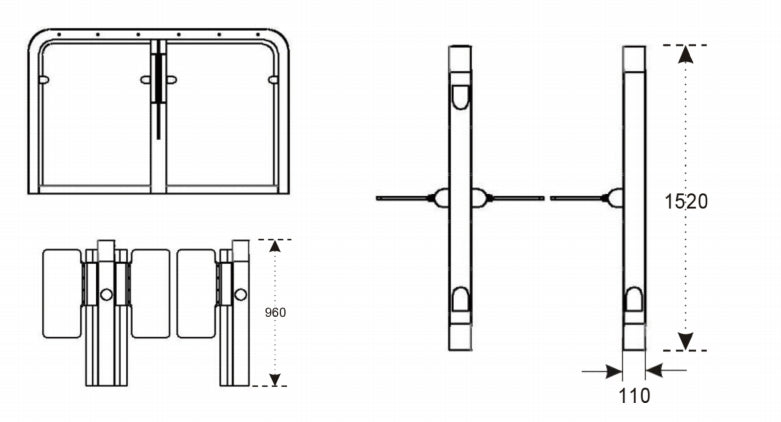

Size Length 1520*Width 110*Height 960mm
Material structure GB 304 stainless steel, the whole machine is 1.5mm thick.
Channel width 600-800mm
Length of brake lever Standard 375mm
Control mode Fully automatic
Control direction Two-way, one-way, one-way + manual free exit gate (optional)
Up and drop gate rod Power off automatic drop rod, power on automatic rise rod
Passing speed 30 people/minute.
Working power supply AC220V.
Usage environment Indoor, outdoor (it is recommended to install a rain awning); temperature: -30'c to 60*c; humidity: less than 95% RH, no condensation
Communication mode Customizable,RS232,RS485, TCP/IP.
