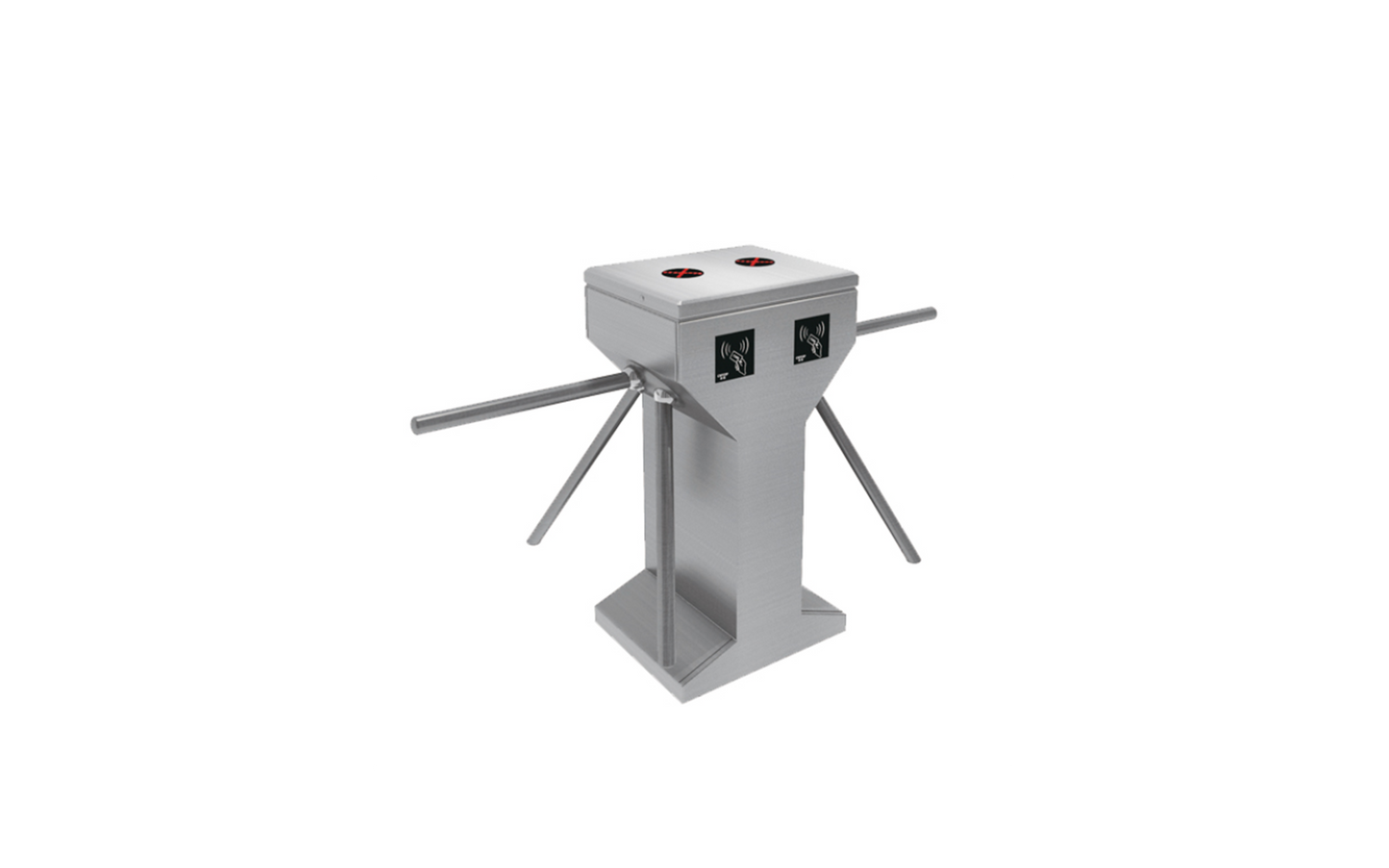

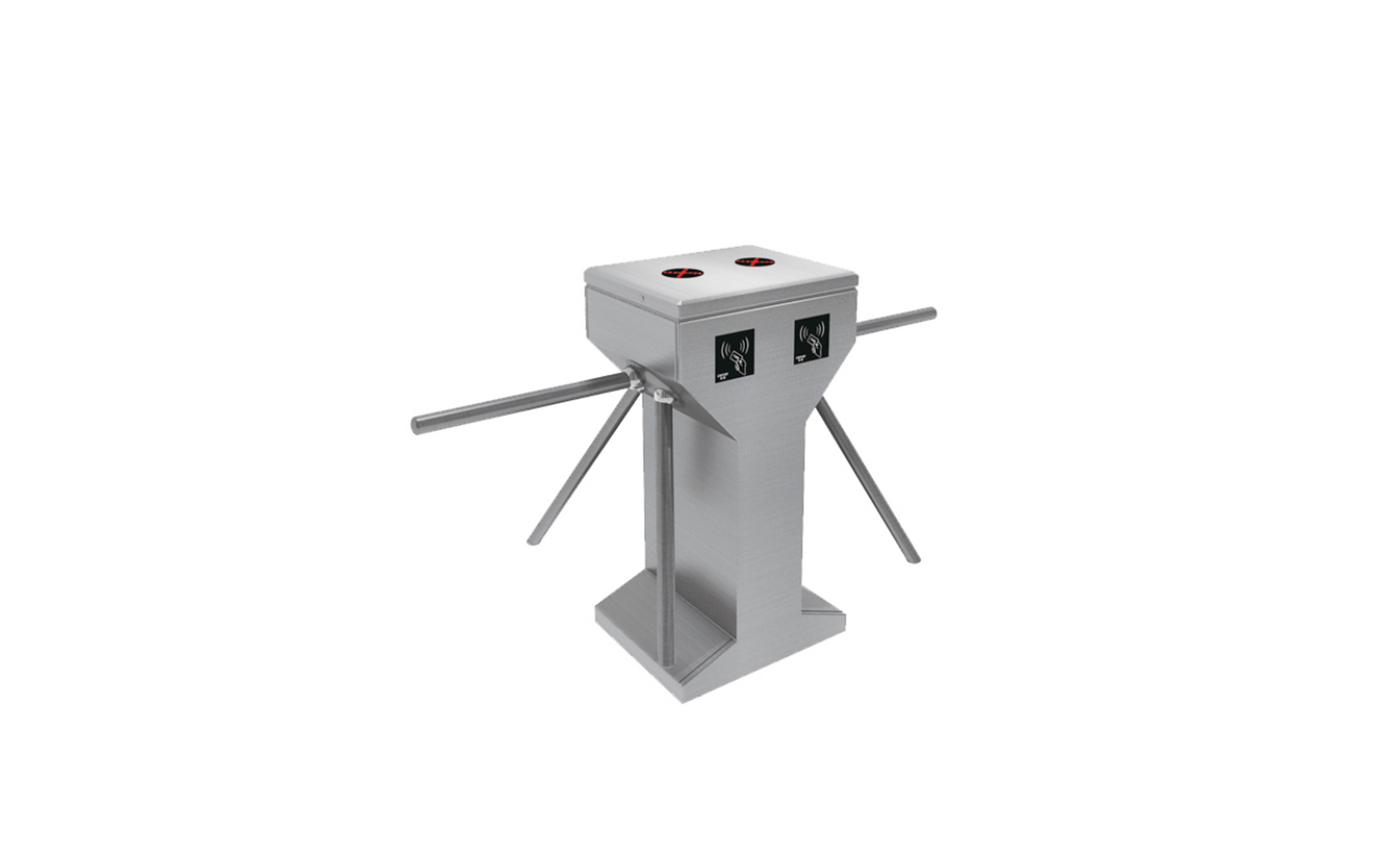

LM-T4 Vertical Double-movement Tripod Gate

Product Description:

1. It adopts the rainproof design with a shell made of high-quality 304 stainless steel that meets national standards. Produced by fully CNC laser cutting, it is not only aesthetically pleasing but also better at rainproofing and rust prevention.
2. The control board of the turnstile is equipped with multiple over-current, over-voltage and lightning protection circuits, making the system operate more stably and reliably.
3. The fourth-generation fully automatic anti-collision self-resetting special movement for the tripod turnstile features an integrated design and stable performance. With a brushless motor + precise control by an encoder + an accurate anti-collision clutch, it can operate stably for up to 10 million times.
4. In case of power failure, the horizontally placed turnstile bar will automatically drop down to ensure the unobstructed passage, and it will automatically reset when powered on again.
5. If there is no passage within the specified time after the turnstile is opened, the system will automatically reset and lock to ensure the security of the passageway.
6. The turnstile bar operates smoothly. It allows only one person to pass through per bar rotation, effectively preventing people from tailing in or out, and is convenient for maintenance and use.

Detailed Introduction：

Functional Features：

1. It has multiple working modes. It allows entry and exit in both directions (by card swiping / facial recognition / QR code scanning), and also enables entry through card swiping / facial recognition / QR code scanning on one side while prohibiting the opening of the turnstile on the other side, or allowing the turnstile to be opened by pressing a button or through infrared induction.
2. The mainboard of the turnstile is equipped with multiple over-current, over-voltage and lightning protection functions, which makes the mainboard operate more stably and have a longer service life. It adopts the key-press setting function, allowing various parameters to be freely configured without the need to connect to a computer.
3. The fourth-generation fully automatic anti-collision self-resetting special movement for the tripod turnstile features an integrated design and stable performance. It adopts a unique encoder signal system and a precise gear transmission system, making the locking, unlocking and operation of the turnstile more accurate and reliable. With a brushless motor + precise control by an encoder + an accurate anti-collision clutch, it can operate stably for up to 10 million times.
4. The anti-collision self-resetting design is more advanced. When subjected to external impact, the turnstile bar will automatically lock, preventing forced passage. After the external force is removed, the turnstile bar will automatically reset to the middle position.
5. The unique mechanical transmission and microprocessor control are organically integrated. After receiving the opening signal and rotation signal, the turnstile bar will automatically rotate 120 degrees under the drive of the motor. Only one person can pass through per rotation of the bar, and it will automatically reset after pedestrians pass through. If there is no passage within the specified time after the turnstile is opened, it will automatically reset to ensure the security of the passageway.
6. The turnstile bar operates smoothly. Only one person can pass through per rotation of the bar, effectively preventing people from tailing in or out, which is convenient for maintenance and use.
7. In case of power failure, the horizontally placed turnstile bar will automatically drop down to ensure the unobstructed passage. It will automatically reset when powered on, meeting the requirements of fire protection and other special requirements and having good security.
8. It has a self-checking function for faults, which is convenient for maintenance and use.
9. It has a clear function of indicating the direction of passage, equipped with super bright direction indicator lights. The intuitive LED direction indicator lights can indicate whether passage is allowed or prohibited.
10. It has a unified and standard external electrical interface, which can be freely connected with various intelligent devices, facilitating system integration and enabling remote control and management through the management computer.
