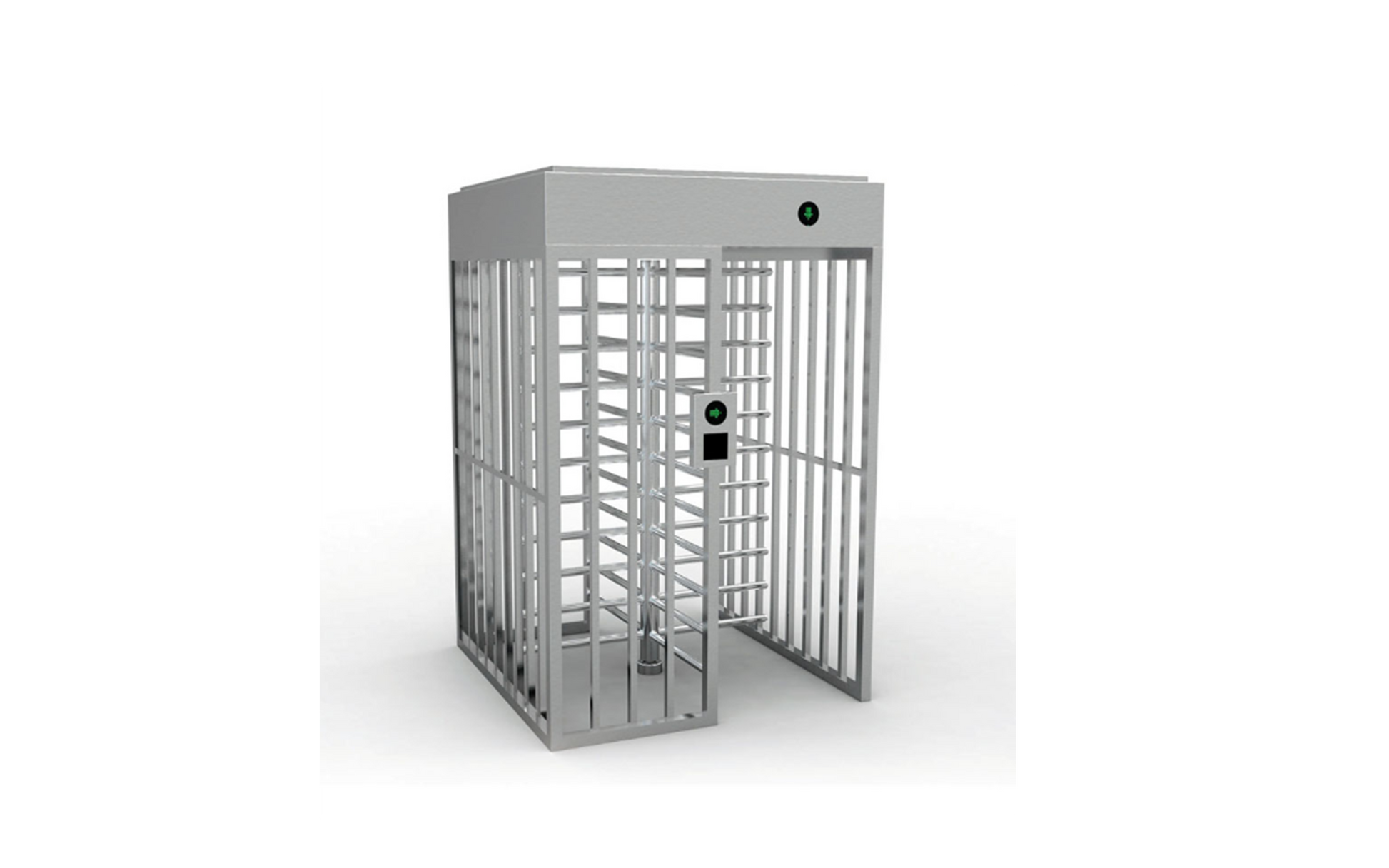

LM-T2-S Square 90-degree Single-door Full-height Gate
LM-T2-S Square 90-degree Single-door Full-height Gate
Regular price
¥0.00 CNY
Regular price
Sale price
¥0.00 CNY
Unit price
/
per
Taxes included.
Tax included. Shipping calculated at checkout.
SKU:
Out of stock
Couldn't load pickup availability
Product Description：
- It adopts a rainproof design with a high-quality 304 stainless steel shell and is produced by fully CNC laser cutting. It is not only aesthetically pleasing but also better at rainproofing and rust prevention.
- It can completely prevent the common phenomena of climbing over or crawling under the turnstile that often occur with ordinary turnstiles, truly achieving anti-collision and enabling unmanned operation.
- The control board of the turnstile is equipped with multiple over-current, over-voltage and lightning protection circuits, making the system operate more stably and reliably.
- The turnstile is unlocked by the opening signal when powered on, and can be locked or unlocked when powered off, meeting the requirements of fire protection and other special requirements and having good security.
- If there is no passage within the specified time after the turnstile is opened, the system will automatically reset and lock to ensure the security of the passageway.
- The turnstile bar operates smoothly. Only one person can pass through per rotation of the bar, effectively preventing people from tailing in or out, which is convenient for maintenance and use.
It is suitable for prisons, banks, railway stations, bus stations, factories, convention and exhibition centers, construction sites, stadiums and other places.
Technical Parameters：
| Item | Details |
|---|---|
| Appearance Dimensions | Length 1500 * Width 1500 * Height 2300mm |
| Material and Structure | 304 stainless steel; Top box 1.5mm, Guardrail / Rotating rod 1.5mm, Rotating column 2.5mm |
| Channel Width | 650mm |
| Gate Rod Length | Standard 600mm |
| Control Mode | Semi-automatic |
| Control Direction | Two-way, One-way, One-way + Manual free exit gate (optional) |
| Locking and Unlocking | Locked or unlocked when power off, Reset and locked when power on, Unlocked by the opening signal |
| Passing Speed | 30 people per minute |
| Working Power Supply | AC110V～AC220V |
| Operating Environment | Indoor and outdoor (It is recommended to install a canopy); Temperature: -30℃ to 60℃; Humidity: less than 95%RH, without condensation |
| Communication Mode | Customizable, RS232, RS485, TCP/IP |
Functional Features：
- It has multiple working modes. It allows entry and exit in both directions (by card swiping / facial recognition / QR code scanning), and also enables entry through card swiping / facial recognition / QR code scanning on one side while prohibiting the opening of the turnstile on the other side, or allowing the turnstile to be opened by pressing a button or manually.
- The mainboard of the turnstile is equipped with multiple over-current, over-voltage and lightning protection, which makes the mainboard operate more stably and have a longer service life. It adopts the key-press setting function, allowing various parameters to be freely configured without the need to connect to a computer.
- The whole system operates smoothly. It adopts a unique incomplete gear transmission system, making the turnstile's locking and unlocking at the zero position more accurate and reliable.
- When powered on, the turnstile is unlocked by the opening signal, and when powered off, it can be locked or unlocked, meeting the requirements of fire protection and other special requirements and having good security.
- It has an automatic reset function and will automatically reset if there is no passage within the specified time after the turnstile is opened.
- The unique mechanical transmission and microprocessor control are organically integrated. After the turnstile receives a valid opening signal, it will be unlocked. It will automatically reset and lock after pedestrians push the rod to pass through. If there is no passage within the specified time after the turnstile is opened, it will automatically reset and lock to ensure the security of the passageway.
- It has a clear function of indicating the direction of passage, equipped with super bright direction indicator lights. The intuitive LED direction indicator lights can indicate whether passage is allowed or prohibited.
- It has a unified and standard external electrical interface, which can be freely connected with various intelligent devices, facilitating system integration and enabling remote control and management through the management computer.
